Mini Wireless USB -- RALINK

Bought this one via Ebay http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&item=220756074298 from seller bateryconnection (yes missing a 't' in battery) for $6.70.

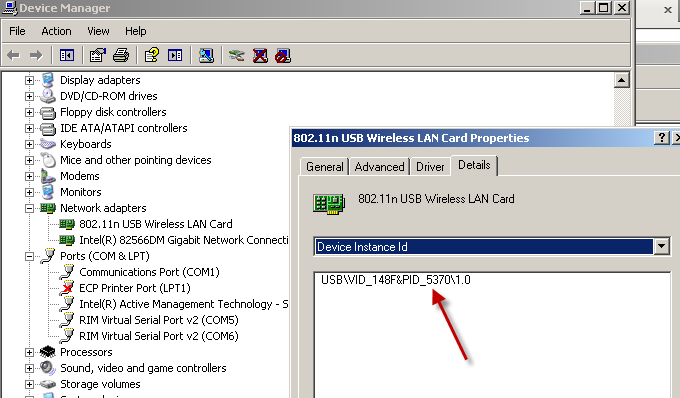

My best guess as to the 'model number' is that it is a 5370 when I looked at it in Device Mgr




BRAND NEW MINI WIFI USB 2.0 ADAPTER

Includes Manual and CD Disc For installation

Installation is VERY easy~! You'll be surfing wirelessly in no time.

This 150MB Wireless USB network adapter works with with 300Mbps PHY Rate for Both Transmiting and Receiving will work for the IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards.It has 2 built-in smart antennas for optimum range,performance and stability. At the same time, CCA technology is used to automatically avoid channel interference. This Wifi dongle supports 64/128/152 bit WEP encryption, as well as WPA/WPA2, WPA-PSK/WPA2-PSK advanced encryption and security mechanisms so you will be able to log on to your newtwork no matter your security settings.It is also able to work very well with wireless security cameras. It is also guaranteed for 3 years.


Features:

Complies with IEEE 801.11n IEEE 802.11g, IEEE 802.11b standards
1x1/1x2 modes
STBC Support for Extended Range
Legacy and High Throughput Modes
20MHz/40MHz bandwidth
Reverse Direction Data Flow and Frame Aggregation
WEP 64/128, WPA, WPA2 Support
Multiple BSSID Support
Provides USB 2.0 Hi-Speed interface
Cisco CCX V1.0 V2.0 V3.0 Compliance
Low Power with Advanced Power Management
Works with,Windows 7, Windows XP, Windows Vista and Windows 2000
Internal Antenna

Specifications:

Standard: IEEE 802.11g, IEEE 802.11b, CSMA/CA with ACK
Interface: USB2.0
Frequency Range:2.4GHz-2.4835GHz
Radio Data Rate:
11N:150/54/28/14/7/3(adaptive)
11G: 54/28/14/7/3 (adaptive)
11b: 11/5.5/2/1M (adaptive)
Channel: 1~11 (US, Canada); 1~13 (Europe) ; 1~14 (Japan)
Spread Spectrum: DSSS
Modulation: BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
Transmission Distance: Indoor up to 100m, outdoor up to 300m (it is limited in an environment)
Transmit Power: 15dBm
Antenna plus: 2X2dBi
LED Indicator: Status
Data Security: WPA; 64/128-bit WEP; TKIP/AES
Environment: Operating Temperature: 0℃~40(32~104)
Operating Humidity: 10%~90% non-condensing
